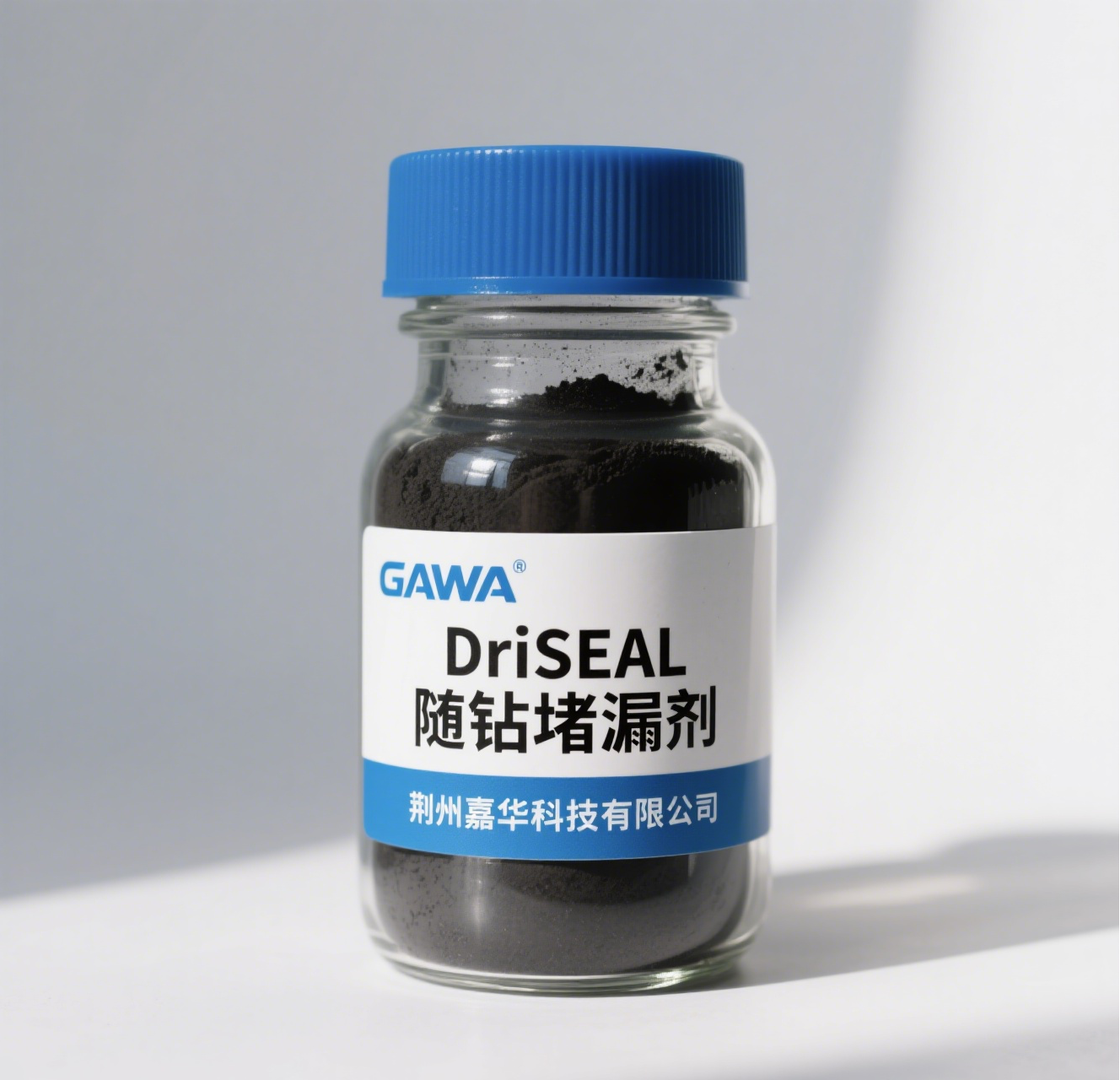

DriSEAL 随鑽堵漏劑 Lost Circulation Material for Drilling

簡介Introduction

DriSEAL主要由顆粒狀和短纖維狀材料按不同的粒徑、比例複配而成的******複合型堵漏≠材料。主要用于随鑽堵漏,粒徑可根據實際需求調整,通常為60目以細。

DriSEAL is a highly efficient composite plugging material primarily composedα of granular and short-fibrous materials, blended in varying particle sizes and ratios. It i∞s mainly used for plugging while drilling, with the particle size¥ adjustable according to actual requirements, typically finer than 60 mesh.

性能及優點Performance and advantages

推薦加量:1.0~5.0%

60目以細的多種材料複合堵漏劑,可用于随鑽防漏堵漏,與鑽井液配伍性©好;

抗溫能力可達到 220℃20-40目砂床的承壓能力≥20.0MPa

一袋式包裝,現場操作方便。

Recommended dosage: 1.0-5.0%;

A composite plugging agent composed of multiple materials finer tha§n 60 mesh, suitable for preventing and plugging leaks while drilling, with good compatibility₹ with drilling fluids;

It has a temperature resistance of up to 220°C, and the pressure"-bearing capacity on a 20-40 mesh sand bed is ≥20.0 MPa;

It comes in one-bag packaging, facilitating convenient on-site operation.

技術參數Technical Parameters

項目Item

技術指标Technical Index

外觀Appearance

灰黑色固體細顆粒fine grayish-black solid particles

比重Specific Gravityg/cm3

1.80-2.80

粒徑上、下限Upper and lower Limits of Particle Sizemm

0.05-0.3

溶解性Solubility

不溶于油和水insoluble in oil and water

20-40目砂床封堵能力Plugging capability in a 20-40 mesh sand bedMPa

≥20.0

油基破乳電壓降低率The reduction rate of demulsification voltage in oil-based λsystems/%

≤10.0

包裝Packaging

采用三合一複合牛皮紙袋包裝,內襯防水塑料薄膜,可根據用(Ωyòng)戶需求提供50kg25kg兩種分裝規格。

The product is packaged in triple-layer composite kraft paper bags with waterproof plastic Ωfilm liners, and is available in two packaging specifications: 50kg and 2♣5kg, according to customer requirements.
